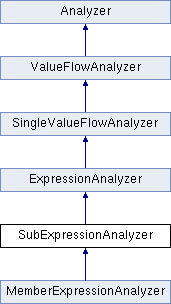

Inheritance diagram for SubExpressionAnalyzer:

Public Types
using	PartialReadContainer = std::vector< std::pair< Token *, ValueFlow::Value > >

Public Types inherited from ValueFlowAnalyzer
using	ProgramState = ProgramMemory::Map

Public Types inherited from Analyzer
enum class	Terminate { None , Bail , Escape , Modified , Inconclusive , Conditional }

enum class	Direction { Forward , Reverse }

enum class	Evaluate { Integral , ContainerEmpty }

Public Member Functions
	SubExpressionAnalyzer (const Token *e, ValueFlow::Value val, const TokenList &t, const Settings &s)

virtual bool	submatch (const Token *tok, bool exact=true) const =0

bool	isAlias (const Token *tok, bool &inconclusive) const override

bool	match (const Token *tok) const override

bool	internalMatch (const Token *tok) const override

void	internalUpdate (Token *tok, const ValueFlow::Value &v, Direction) override

ValuePtr< Analyzer >	reanalyze (Token *, const std::string &) const override
	Return analyzer for expression at token. More...

Public Member Functions inherited from ExpressionAnalyzer
	ExpressionAnalyzer (const Token *e, ValueFlow::Value val, const TokenList &t, const Settings &s)

void	setupExprVarIds (const Token *start, int depth=0)

virtual bool	skipUniqueExprIds () const

bool	invalid () const override

ProgramState	getProgramState () const override

bool	dependsOnThis () const override

bool	isGlobal () const override

bool	isVariable () const override

Action	isAliasModified (const Token *tok, int indirect) const override

Public Member Functions inherited from SingleValueFlowAnalyzer
	SingleValueFlowAnalyzer (ValueFlow::Value v, const TokenList &t, const Settings &s)

const std::unordered_map< nonneg int, const Variable * > &	getVars () const

const std::unordered_map< nonneg int, const Variable * > &	getAliasedVars () const

const ValueFlow::Value *	getValue (const Token *) const override

ValueFlow::Value *	getValue (const Token *) override

void	makeConditional () override

bool	useSymbolicValues () const override

void	addErrorPath (const Token *tok, const std::string &s) override

bool	lowerToPossible () override
	Lower any values to possible. More...

bool	lowerToInconclusive () override
	Lower any values to inconclusive. More...

bool	isConditional () const override
	If the value is conditional. More...

bool	stopOnCondition (const Token *condTok) const override
	If analysis should stop on the condition. More...

bool	updateScope (const Token *endBlock, bool) const override
	If the analysis is unsure whether to update a scope, this will return true if the analysis should bifurcate the scope. More...

Public Member Functions inherited from ValueFlowAnalyzer
	ValueFlowAnalyzer (const TokenList &t, const Settings &s)

virtual int	getIndirect (const Token *tok) const

bool	isCPP () const

const Settings &	getSettings () const

Action	analyzeLifetime (const Token *tok) const

std::unordered_map< nonneg int, const Token * >	getSymbols (const Token *tok) const

ConditionState	analyzeCondition (const Token *tok, int depth=20) const

virtual Action	isModified (const Token *tok) const

virtual Action	isThisModified (const Token *tok) const

Action	isGlobalModified (const Token *tok) const

virtual Action	isWritable (const Token *tok, Direction d) const

virtual void	writeValue (ValueFlow::Value value, const Token tok, Direction d) const

const Token *	findMatch (const Token *tok) const

bool	isSameSymbolicValue (const Token tok, ValueFlow::Value value=nullptr) const

Action	analyzeMatch (const Token *tok, Direction d) const

Action	analyzeToken (const Token ref, const Token tok, Direction d, bool inconclusiveRef) const

Action	analyze (const Token *tok, Direction d) const override
	Analyze a token. More...

template<class F >
std::vector< MathLib::bigint >	evaluateInt (const Token *tok, F getProgramMemory) const

std::vector< MathLib::bigint >	evaluateInt (const Token *tok) const

std::vector< MathLib::bigint >	evaluate (Evaluate e, const Token tok, const Token ctx=nullptr) const override
	Try to evaluate the value of a token(most likely a condition) More...

void	assume (const Token *tok, bool state, unsigned int flags) override
	The condition that will be assumed during analysis. More...

void	updateState (const Token *tok) override
	Update the state of the program at the token. More...

void	update (Token *tok, Action a, Direction d) override
	Update the state of the value. More...

Public Member Functions inherited from Analyzer
std::vector< MathLib::bigint >	evaluate (const Token tok, const Token ctx=nullptr) const

virtual	~Analyzer ()=default

	Analyzer (const Analyzer &)=default

Public Attributes
std::shared_ptr< PartialReadContainer >	partialReads

Public Attributes inherited from ExpressionAnalyzer
const Token *	expr

	bool = true

bool	unknown {}

bool	dependOnThis {}

bool	uniqueExprId {}

Public Attributes inherited from SingleValueFlowAnalyzer
std::unordered_map< nonneg int, const Variable * >	varids

std::unordered_map< nonneg int, const Variable * >	aliases

ValueFlow::Value	value

Public Attributes inherited from ValueFlowAnalyzer
const TokenList &	tokenlist

const Settings &	settings

ProgramMemoryState	pms

Additional Inherited Members
Static Public Member Functions inherited from ExpressionAnalyzer
static bool	nonLocal (const Variable *var, bool deref)

Static Public Member Functions inherited from ValueFlowAnalyzer
static const std::string &	getAssign (const Token *tok, Direction d)

Protected Member Functions inherited from Analyzer
	Analyzer ()=default
